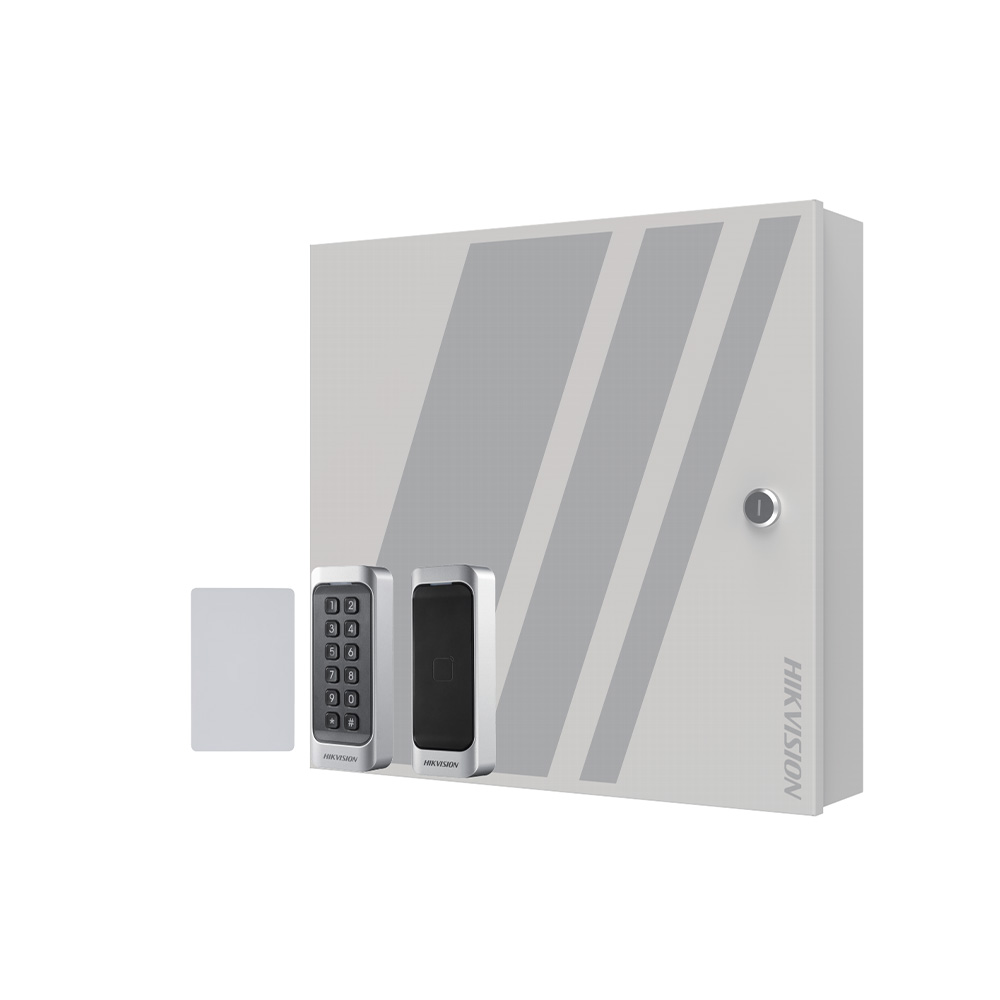

Hikvision DS-K2704-KIT 4-Door Network Access Control Kit

Features:

• Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
• Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback
• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
• DS-K2704X*1 DS-K1107AMK*1 DS-K1107AM*3 IC S50-25 *1
